Highpoint Gardens CCTV installation

Why two views can be useful around a shared outdoor area

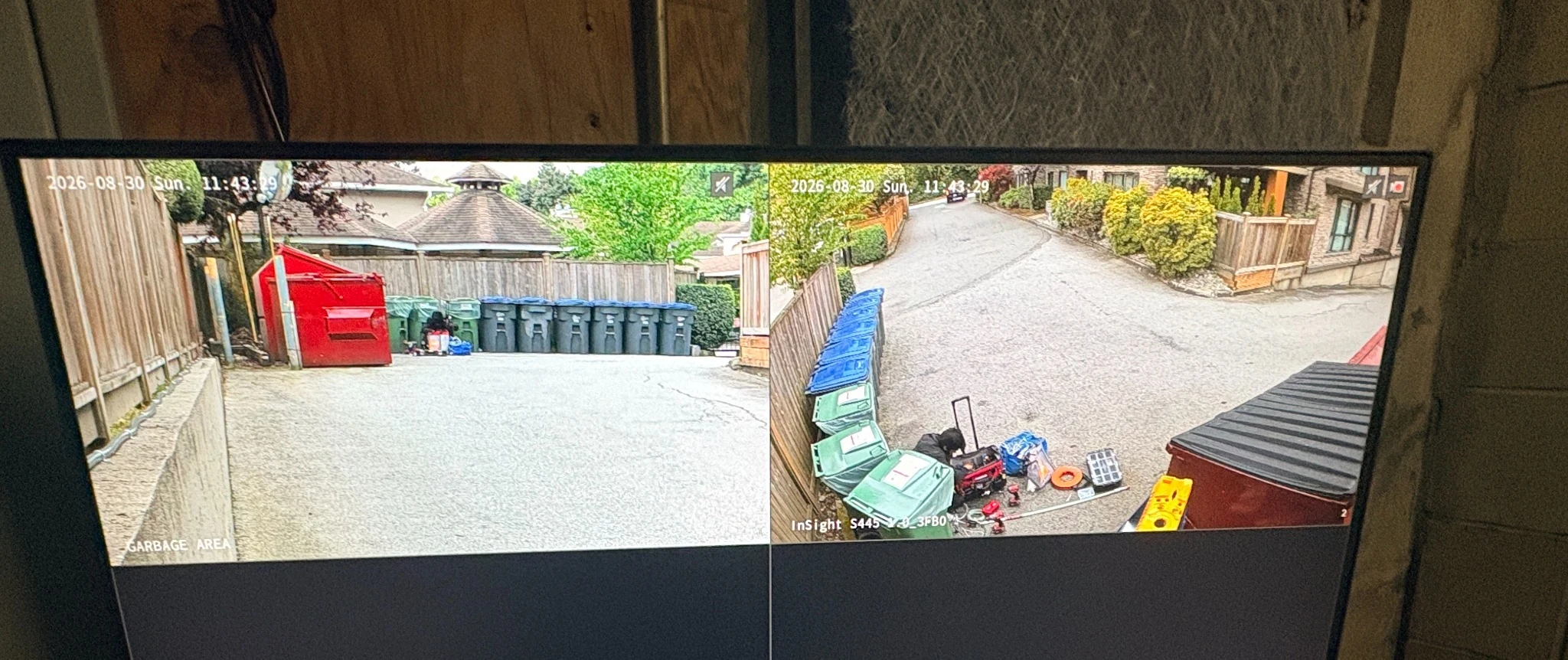

A shared garbage or recycling area has more than one sightline. A camera looking across the bins can show activity within that zone, while a second camera facing the approach can show movement into and out of the area. At Highpoint Gardens, the monitor photograph shows these different perspectives side by side.

Camera count alone does not tell a strata council whether the coverage is useful. The important questions are what each view shows, where objects or landscaping obstruct it, how large a person appears at the relevant distance, and whether the recorded image remains useful after dark. A live monitor photo documents the view; it does not establish every camera's night performance or identification capability.

How does a motorized camera lens work?

A motorized varifocal lens uses small internal motors to adjust zoom and focus through compatible camera or recorder controls. The camera body can remain aimed in the same direction while the lens changes how wide or narrow the image appears. Exact controls and adjustment ranges depend on the model.

At a wider setting, more of the surrounding area fits into the picture. At a tighter setting, a smaller area occupies more of the image. This trade-off lets an installer frame a chosen entrance, pathway or service area instead of accepting a single fixed lens view. Focus is then checked so the relevant distance appears sharp; autofocus behaviour varies by camera.

Optical adjustment happens at the lens while the scene is being captured. Digital zoom on existing footage only enlarges pixels already recorded; it cannot recover detail the camera did not capture. A useful setup therefore starts with the right position, field of view and focus before an incident occurs.

• Wider view: more surroundings in the frame
• Tighter view: a smaller target area fills more of the image
• Focus: adjusted and checked at the distance that matters
• Final check: review recorded footage as well as live video

Motorized lens adjustment and PTZ are different capabilities

Motorized does not automatically mean the whole camera moves. A PTZ camera provides powered pan, tilt and zoom. A camera with only a motorized lens can adjust its optical view without providing powered left-right or up-down movement. A dome or turret describes the housing, not a guarantee of either capability.

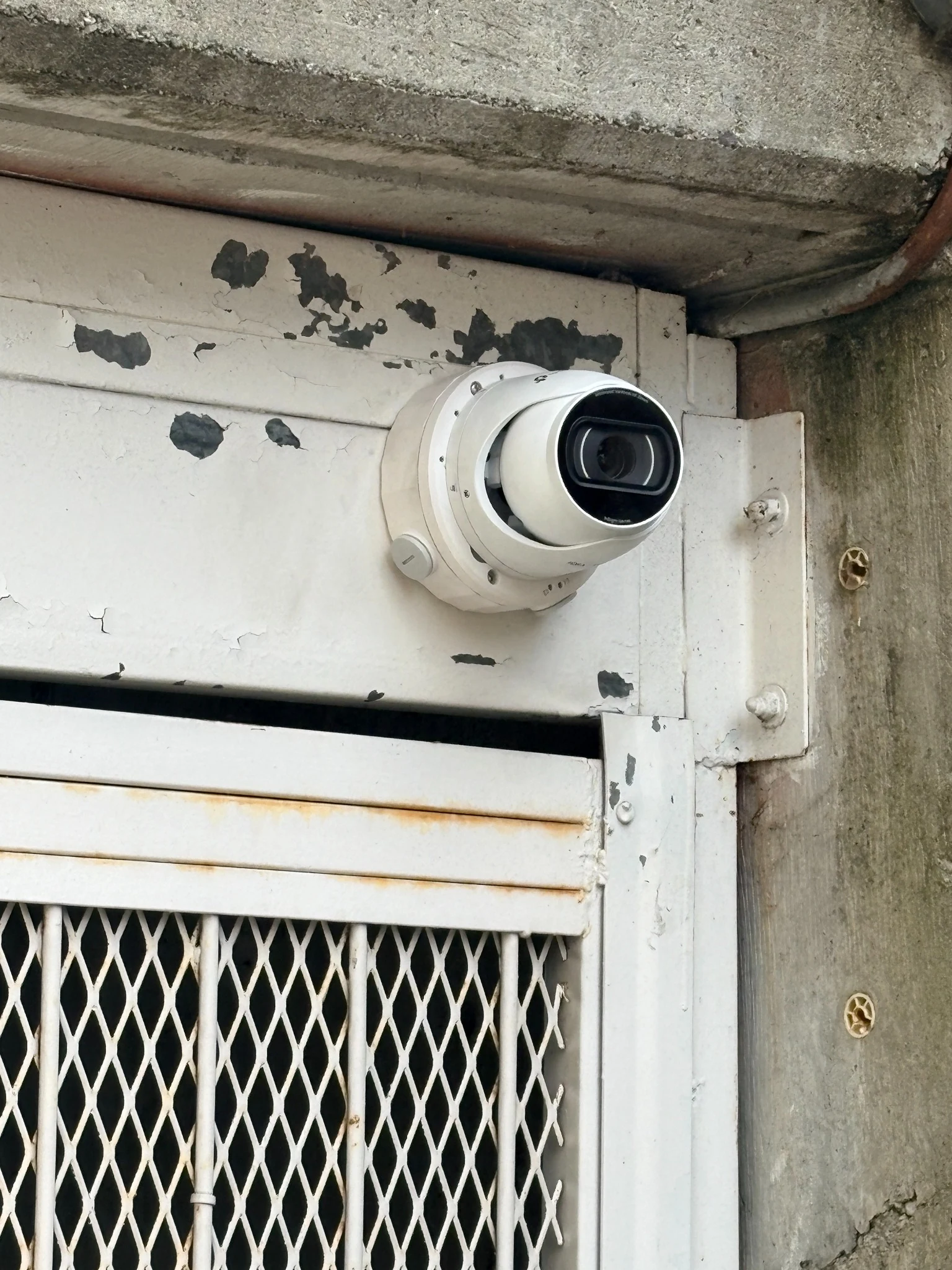

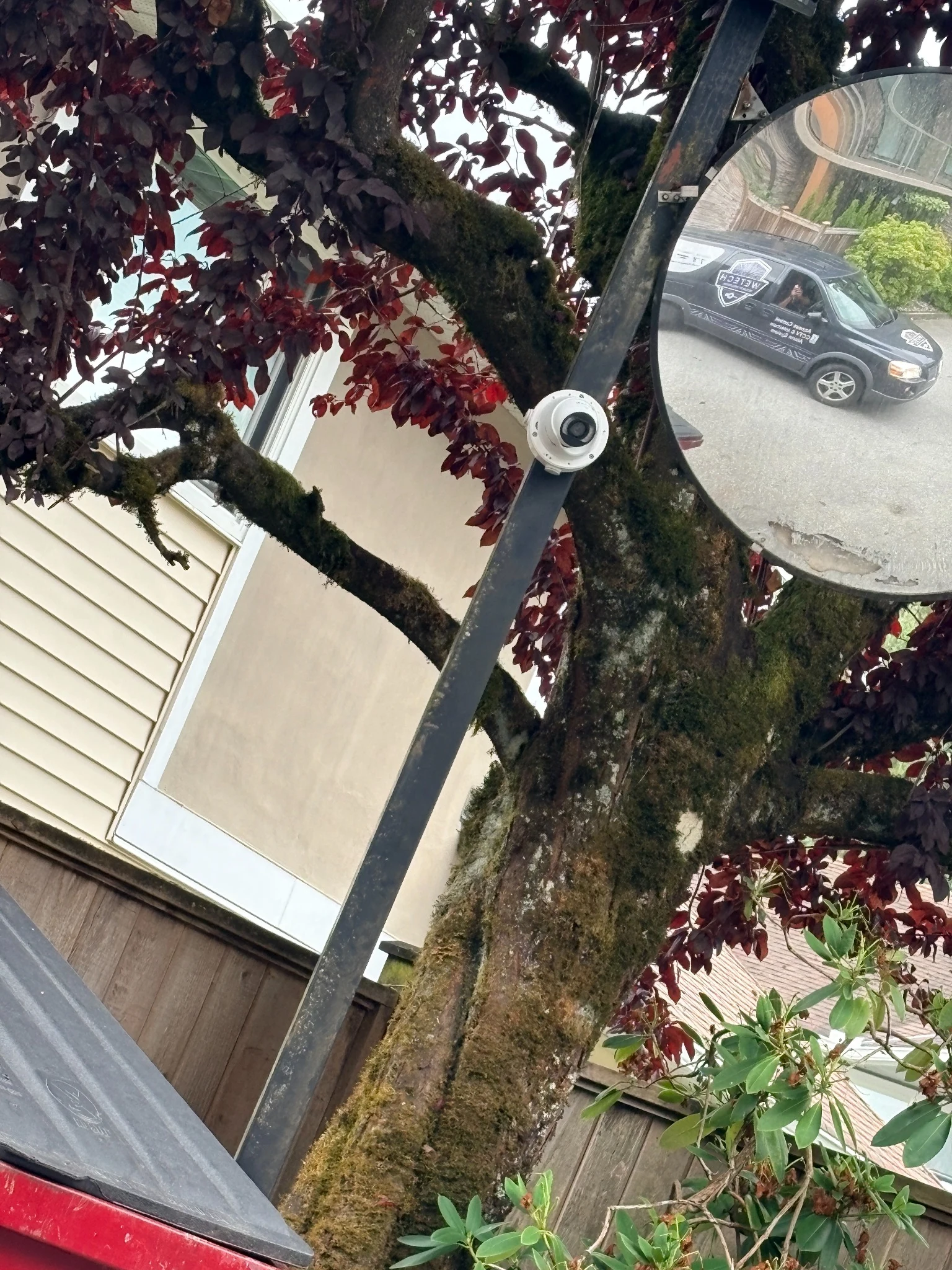

This Highpoint Gardens record documents two Hikvision cameras, including one motorized camera. The lens explanation describes the technology generally; the project does not claim powered pan and tilt, automatic tracking or a particular optical zoom range.

Planning a similar CCTV installation in Guildford or Surrey

For a small strata camera addition, start with the common area you want to see and the question the footage needs to answer. WeTech can assess camera positions, lens options, lighting, suitable cable routes and compatibility with the property's recorder. Recording capacity, retention and authorized access are scoped separately for each property.

Existing systems and budgets vary. Bring photographs of the current cameras and recorder, the approximate number of views required and the area's address to the initial conversation. A site visit helps determine whether a targeted addition, a recorder service or a broader camera upgrade is the appropriate next step.
